Assignment 1 / Multimodal / Model Backbone

Shared CLIP Encoder Zero-Shot + CoOp + Linear Probe

One representation space, three ways to make a decision.

The entire report is anchored on `openai/clip-vit-base-patch32`. Images are encoded once into a shared embedding space, then evaluated through three heads: averaged prompt prototypes for zero-shot, learnable context prompts for CoOp, and a linear classifier for the few-shot probe baseline.

Shared image encoder

CLIP ViT-B/32 acts as the fixed representation engine for every route in the report. That design removes backbone retraining from the comparison, which makes the downstream question cleaner: how much adaptation is really needed once a strong image-text encoder is already available?

Backbone
ViT-B/32

OpenAI CLIP image-text model with a shared projection space.

Prompt Ensemble
5

Each class is represented by the average of five prompt embeddings in zero-shot mode.

CoOp Context
16

Sixteen learnable context tokens are inserted before the class label by default.

Frozen Weights
CLIP

CLIP stays frozen for both CoOp and the linear probe; only the head or prompt context changes.

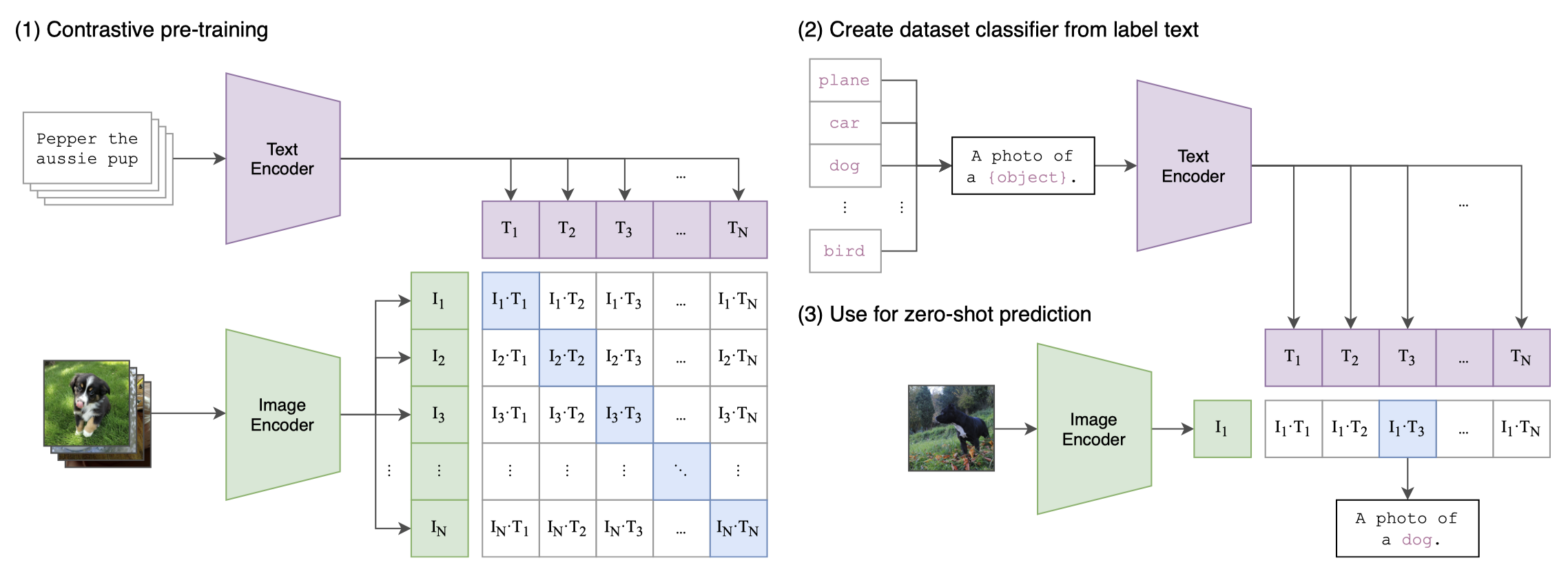

Overview diagram of the CLIP model showing image and text encoders in a shared embedding space.
CLIP aligns image and text representations into a shared embedding space. The multimodal track reuses that joint space directly for zero-shot prompting and as the base layer for CoOp and linear-probe adaptation.

Decision routes

Route Text representation Trainable part Inference rule
Zero-shot Five hand-written prompt templates per class, averaged into one class prototype. None Image embedding multiplied with averaged prompt embeddings.
CoOp Class label plus learnable context tokens encoded by frozen CLIP text tower. Context tokens only Image embedding compared with learned text embeddings.
Linear probe No text at inference Linear classifier on frozen image features Image embedding sent through a trained linear layer.
image -> CLIP image encoder -> normalized image embedding

zero-shot:
  5 prompt templates per class
  -> CLIP text encoder
  -> average 5 prompt embeddings
  -> similarity(image_embed, class_prompt_embed)

CoOp:
  class label + learnable context tokens
  -> frozen CLIP text encoder
  -> learned text embeddings
  -> similarity(image_embed, learned_text_embed)

linear probe:
  normalized image embedding
  -> trainable linear classifier
Zero-shot confusion matrix.
Zero-shot operates by matching image embeddings against averaged prompt embeddings.
CoOp confusion matrix at 128 shots.
CoOp keeps the same image encoder but replaces fixed prompts with learned context tokens.

Relevant implementation in src/

The actual backbone logic lives in the training and embedding scripts. Zero-shot depends on prompt averaging from extract_embedding.py, while CoOp and the linear probe are implemented in train.py.

# assignments/assignment1/multimodal/src/extract_embedding.py
def build_text_embeddings(model, processor, class_names, prompt_templates, device):
    for label_id, class_name in enumerate(class_names):
        prompts = [template.format(humanize_class_name(class_name)) for template in prompt_templates]
        text_inputs = processor(text=prompts, return_tensors="pt", padding=True, truncation=True)
        text_outputs = model.get_text_features(**text_inputs)
        prompt_embeddings = text_outputs / text_outputs.norm(dim=-1, keepdim=True)
        pooled_embedding = prompt_embeddings.mean(dim=0)
        pooled_embedding = pooled_embedding / pooled_embedding.norm()
        class_embeddings.append(pooled_embedding.cpu())
# assignments/assignment1/multimodal/src/train.py
def run_zero_shot(test_payload, text_payload, batch_size):
    logit_scale = float(text_payload["logit_scale"])
    logits = compute_similarity_logits(
        image_embeddings=test_payload["embeddings"],
        text_embeddings=text_payload["class_embeddings"],
        logit_scale=logit_scale,
        batch_size=batch_size,
    )
    predictions = logits.argmax(dim=-1)
    metrics = compute_metrics(
        true_labels=test_payload["label_ids"].tolist(),
        predicted_labels=predictions.tolist(),
    )
    return metrics, logits
# assignments/assignment1/multimodal/src/train.py
def train_linear_probe(train_embeddings, train_labels, val_embeddings, val_labels, ...):
    classifier = nn.Linear(train_embeddings.shape[1], num_classes).to(device)
    optimizer = torch.optim.AdamW(classifier.parameters(), lr=learning_rate, weight_decay=weight_decay)
    criterion = nn.CrossEntropyLoss()
    ...
    logits = classifier(batch_embeddings)
    loss = criterion(logits, batch_labels)

Why the fixed backbone matters

  • It keeps the comparison honest by isolating the head rather than conflating head choice with backbone fine-tuning.
  • It makes zero-shot, CoOp, and linear-probe results directly comparable because they consume the same image feature space.
  • It reduces training cost and lets the report focus on prompt engineering versus lightweight adaptation.
  • It supports practical deployment because embeddings can be precomputed and reused across methods.
The key finding from this run is unintuitive but important: the frozen backbone is already strong enough that zero-shot with averaged prompts beats every few-shot variant on final test accuracy.
